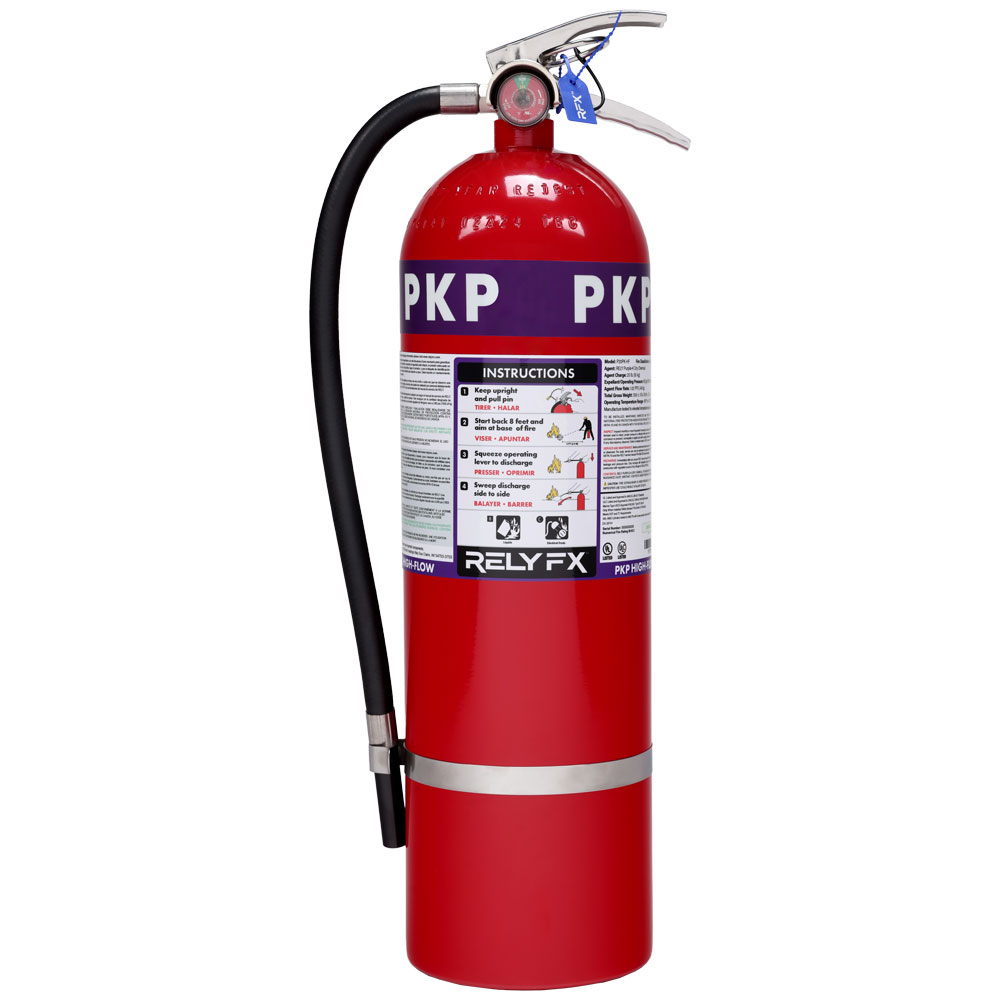

P20PKP-HF Mil-Spec Hand Portable 20lb PKP Stored Pressure Fire Extinguisher

The RELY FX™ P20PKP-HF PKP dry chemical fire extinguisher is designed to effectively suppress Class B and C fires for both novice and professional operators. It is ideally suited for deployment in demanding environments including emergency response, military applications, and corrosive marine conditions.

Constructed with a non-shat DOT 3AL-1800 aluminum cylinder, the unit has successfully passed rigorous vibration and shock testing generating impact forces up to 200 Gs to ensure structural and operational integrity under severe conditions. This durable design supports reliable deployment where high-output fire suppression is critical.

The P20PKP-HF model carries a 10-year limited factory warranty and is manufacturer-tested for operational performance across temperature extremes ranging from -65°F to 160°F, supporting a total functional temperature span of 225°F.

Key Performance Benefits

• High-Flow Discharge Performance for Rapid Fire Knockdown
  Agent delivery rate exceeding 1 pound per second supports aggressive suppression of flammable liquid fires and improved response in time-critical Class B and C fire situations
• High Hazard Occupancy Coverage (80-B:C Rating)
  Fire rating fulfills NFPA High Hazard occupancy requirements, supporting use in environments with elevated fire intensity and fuel load
• Optimized for Class B and C Fire Risks
  Designed to address flammable liquid fires and energized electrical equipment commonly found in industrial, marine, fuel-handling, and aviation environments
• Extended Reach for Complex Fire Scenarios
  Effective discharge range of up to 40 feet supports suppression of obstacle, pressure-fed, and three-dimensional fire hazards where distance and coverage are critical
• Built for Demanding Environments
  Engineered for deployment in industrial facilities, marine environments, emergency response scenarios, military applications, and corrosive offshore conditions
• Extreme Temperature Reliability
  Manufacturer-tested for operational performance from -65°F to 160°F, supporting dependable use across severe environmental conditions
• Compliance-Ready for Regulated Environments
  Designed to meet UL, ULC, USCG, FAA, DOT, NFPA, and DOD requirements for use in regulated and inspected facilities

Engineered for Reliability

• PKP 90 Dry Chemical Agent System (Potassium Bicarbonate-Based)
  Contains 20 pounds of PKP dry chemical agent composed of approximately 92% potassium bicarbonate, optimized for high-performance suppression of flammable liquid fires and Class B:C hazards
• Non-Shat DOT-Specification Aluminum Cylinder Construction
  DOT 3AL-1800 aluminum cylinder designed to withstand vibration, shock, and severe operating conditions while maintaining structural integrity under high-demand use
• Corrosion-Resistant Cylinder Finish
  Red epoxy powder-coated exterior enhances durability and supports corrosion resistance for marine and industrial environments
• Heavy-Duty Valve Assembly (Dry Chemical Model)
  Chrome-plated forged brass valve assembly with protective gauge guards and stainless-steel operating components ensures reliable long-term performance in demanding conditions
• Reinforced Pull Pin and Retention System
  Extra-thick stainless steel pull pin with large finger loop and retention tether helps prevent loss during operation and supports ease of use under stress
• Heavy-Duty Internal Siphon Tube Assembly
  Threaded steel siphon tube construction supports consistent agent flow and dependable discharge performance
• High-Performance Hose and Nozzle Assembly
  Extended-length discharge hose with stainless steel fittings and anodized aluminum nozzle provides controlled and directed high-flow discharge performance
• Secure Hose Retention System
  Heavy-duty stainless steel hose band with threaded adjustment ensures hose stability during transport and deployment
• High-Visibility Instruction Labeling
  Large, field-replaceable tri-lingual nameplate provides clear operating instructions and service information across diverse user environments

Service & Lifecycle Advantages

• Extended 10-Year Service Interval
  DOT-compliant cylinder design supports a 10-year retest/requalification cycle, reducing long-term inspection frequency and maintenance burden
• Elimination of 6-Year Internal Examination Requirement
  Design removes the need for standard 6-year internal inspections, simplifying service schedules and reducing downtime
• Advanced Vibration and Shock Performance
  Successfully tested under severe vibration and shock conditions generating impact forces up to 200 Gs to ensure long-term operational reliability
• Factory Support and Training Access
  Includes access to service manuals, online training resources, and optional onsite certification programs aligned with NFPA-10 standards

FAQs

What is a PKP fire extinguisher used for?
PKP fire extinguishers are designed for Class B and C fires, particularly flammable liquid hazards in industrial, aviation, marine, and fuel-handling environments.

What makes this a high-flow extinguisher?
The P20PKP-HF delivers agent at more than 1 pound per second, enabling faster fire knockdown and improved performance in complex or high-intensity fire scenarios.

What does High Hazard occupancy mean?
High Hazard environments involve greater fire risk due to higher fuel loads or more severe fire conditions, requiring higher-rated extinguishers like 80-B:C models.

Is this suitable for marine and military use?
Yes. The P20PKP-HF meets USCG requirements and aligns with DOD and Navy specifications for regulated environments.

Does this require frequent maintenance?
No. The design supports a 10-year DOT retest cycle and eliminates the need for standard 6-year internal examinations.
