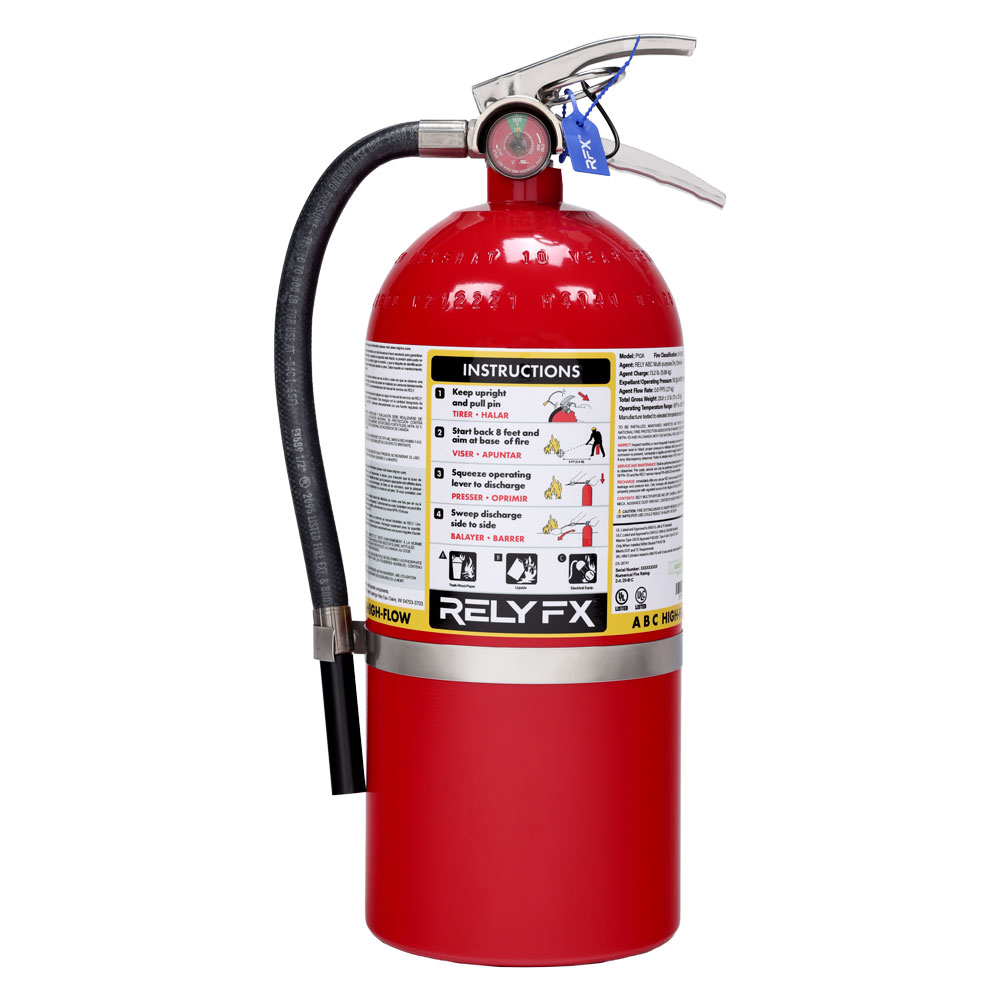

P10A-HF Hand Portable 10lb ABC High-Flow Stored Pressure Fire Extinguisher

The RELY FX™ P10A-HF ABC dry chemical fire extinguisher is designed to effectively suppress Class A, B, and C fires for both novice and professional operators. It is ideally suited for deployment in demanding environments including emergency response, military applications, and corrosive marine conditions.

Constructed with a non-shat DOT 3AL-1800 aluminum cylinder, the unit has successfully passed rigorous vibration and shock testing to ensure structural and operational integrity under severe conditions. This durable design supports reliable deployment where high-output fire suppression is critical.

The P10A-HF model carries a 10-year limited factory warranty and is manufacturer-tested for operational performance across temperature extremes ranging from -65°F to 160°F, supporting a total functional temperature span of 225°F.

Key Performance Benefits

• High-Flow Discharge Performance for Faster Fire Knockdown
  Agent delivery rate exceeding 1 pound per second supports rapid suppression and improved response in time-critical Class A, B, and C fire situations
• Multi-Class Fire Protection (ABC Rated)
  Designed to address ordinary combustibles, flammable liquids, and energized electrical equipment across industrial and commercial environments
• NFPA 10 Extra Occupancy Compliance Support
  Industry-leading high-flow ratings align with NFPA 10 Extra Occupancy hazard requirements for higher-risk applications
• Effective Coverage of Complex Fire Scenarios
  High-flow discharge supports obstacle, pressure-fed, and three-dimensional fire hazard suppression where standard extinguishers may be limited
• Extreme Temperature Reliability
  Manufacturer-tested for operational performance from -65°F to 160°F, supporting dependable use across severe environmental conditions
• Compliance-Ready for Regulated Environments
  Designed to meet UL, ULC, USCG, DOT, and NFPA standards for use in regulated and inspected facilities

Engineered for Reliability

• ABC 90 Dry Chemical Agent System (MAP-Based)
  Contains 13.2 pounds of multi-purpose dry chemical agent composed of 90% monoammonium phosphate (MAP), optimized for consistent Class A, B, and C fire suppression performance
• Non-Shat DOT-Specification Aluminum Cylinder Construction
  DOT 3AL-1800 aluminum cylinder designed to withstand vibration, shock, and severe operating conditions while maintaining structural integrity
• Corrosion-Resistant Cylinder Finish
  Red epoxy powder-coated exterior enhances durability and supports corrosion resistance for marine and industrial environments
• Heavy-Duty Valve Assembly (Dry Chemical Model)
  Chrome-plated forged brass valve assembly with protective gauge guards and stainless-steel operating components ensures reliable performance under demanding conditions
• Reinforced Pull Pin and Retention System
  Extra-thick stainless steel pull pin with large finger loop and retention tether helps prevent loss during operation and supports ease of use under stress
• Heavy-Duty Internal Siphon Tube Assembly
  Threaded steel siphon tube construction supports consistent agent flow and dependable discharge performance
• High-Performance Hose and Nozzle Assembly
  Extended-length discharge hose with stainless steel fittings and anodized aluminum nozzle provides controlled and directed high-flow discharge
• Secure Hose Retention System
  Heavy-duty stainless steel hose band with threaded adjustment ensures hose stability during transport and deployment
• High-Visibility Instruction Labeling
  Large, field-replaceable tri-lingual nameplate provides clear operating instructions and service information across diverse user environments

Service & Lifecycle Advantages

• Extended 10-Year Service Interval
  DOT-compliant cylinder design supports a 10-year retest/requalification cycle, reducing long-term inspection frequency and maintenance burden
• Elimination of 6-Year Internal Examination Requirement
  Design removes the need for standard 6-year internal inspections, simplifying long-term service planning
• Proven Performance Under Severe Conditions
  Successfully tested for vibration, shock, and environmental durability to ensure long-term operational reliability
• Factory Support and Training Access
  Includes access to service manuals, online training resources, and optional onsite certification programs aligned with NFPA-10 standards
