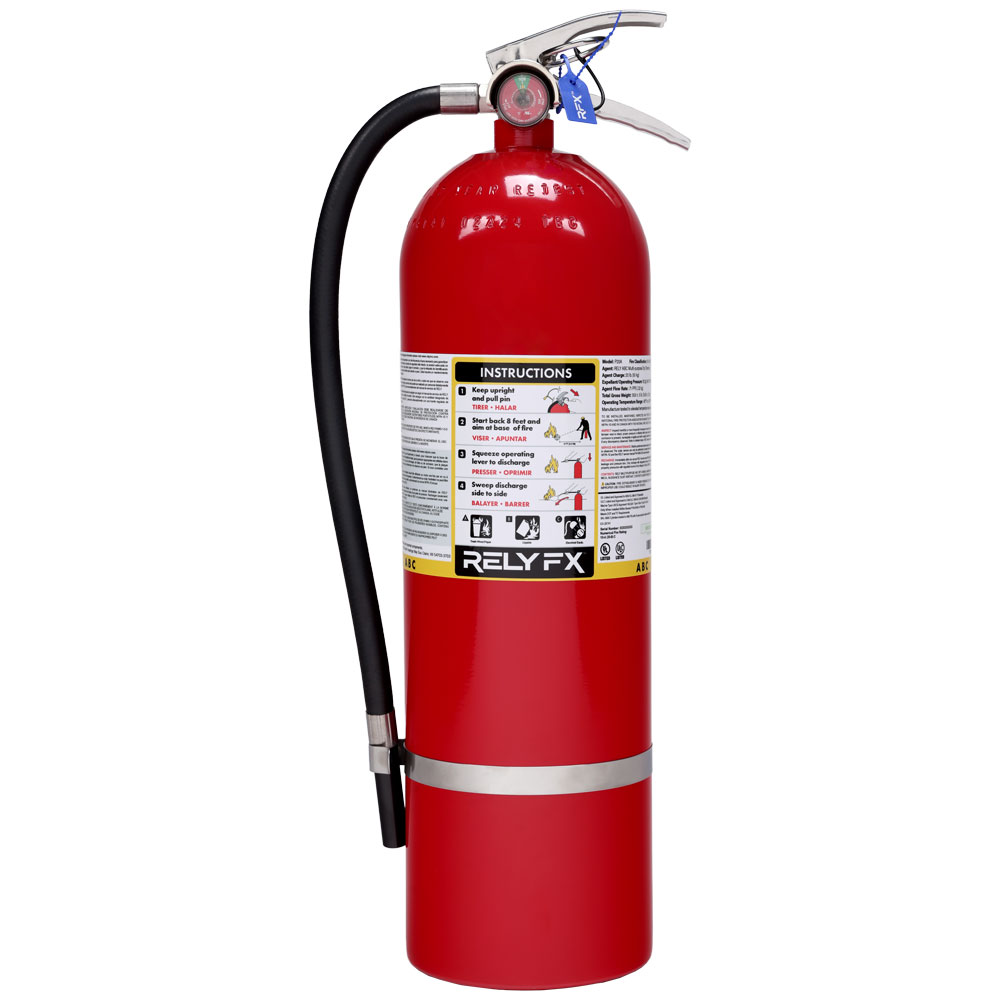

Built for high-performance industrial, marine, mining, and extreme environments, the RELY FX™ P20A-HF 20 lb high-flow ABC fire extinguisher is specifically designed for demanding applications requiring multi-class fire protection. Its industry-leading high-flow ratings support compliance with NFPA 10 Extra Occupancy hazard requirements, while an agent delivery rate exceeding one pound per second provides exceptional performance for obstacle, pressure-fed, and three-dimensional fire hazards. UL, ULC, USCG, NFPA, and DOD compliant, this model is engineered for professionals operating in regulated and high-risk environments.
Contact us today for a personalized price quote on our industry-leading fire protection equipment. Our experts will tailor a solution to meet your facility’s safety and compliance needs. Send us a message below or if you are interested in becoming a dealer, give us a call. Phone: 833-305-9499
The RELY FX™ P20A-HF ABC dry chemical fire extinguisher is designed to effectively suppress Class A, B, and C fires for both novice and professional operators. It is ideally suited for deployment in demanding environments including emergency response, military applications, and corrosive marine conditions.
Constructed with a non-shat DOT 3AL-1800 aluminum cylinder, the unit has successfully passed rigorous vibration and shock testing generating impact forces up to 200 Gs to ensure structural and operational integrity under severe conditions. This durable design supports reliable deployment where high-output fire suppression is critical.
The P20A-HF model carries a 10-year limited factory warranty and is manufacturer-tested for operational performance across temperature extremes ranging from -65°F to 160°F, supporting a total functional temperature span of 225°F.
What is a 20 lb high-flow ABC fire extinguisher used for?
A 20 lb high-flow ABC extinguisher is designed for industrial facilities, marine operations, military applications, and high-risk environments requiring faster agent delivery and stronger multi-class fire suppression performance.
How is this different from a standard 20 lb ABC extinguisher?
The P20A-HF delivers agent at more than 1 pound per second and provides extended reach, improving fire knockdown speed and performance in complex or high-intensity fire scenarios.
What does NFPA 10 Extra Occupancy mean?
Extra Occupancy hazard requirements apply to environments with higher fire intensity, larger fuel loads, or more severe fire risks that require stronger extinguisher performance.
Is this suitable for marine and shipboard use?
Yes. The P20A-HF meets USCG requirements and supports optional stainless-steel bracket configurations for shipboard applications.
Does this require frequent maintenance?
No. The design supports a 10-year DOT retest cycle and eliminates the need for standard 6-year internal examinations.
| Specification | Details |
|---|---|
| Model | P20A-HF |
| Part Number | 10-30202 |
| Fire Rating | 10-A:80-B:C |
| Agent | 20 lb (9.1 kg) ABC Dry Chemical |
| Operating Pressure | 240 psi (1655 kPa) |
| Discharge Rate | 1.06 lb/sec (0.48 kg/sec) |
| Discharge Duration | 20.9 seconds |
| Discharge Range | 40 ft (12.2 m) |
| Operating Temperature | -65°F to 120°F* (-54°C to 49°C) |
| Total Charged Weight | 39.9 lb (18.1 kg) |
| Dimensions (H x W x D) | 25.9″ x 8.0″ x 7.0″ |
| UL Listed and Labeled | UL 299 & UL 711 |
| ULC Listed and Labeled | S-504 & S-508 |
| USCG Approval | 46 CFR §162.028 (Type-A Size II / Type-B Size III) |
| DOT Compliance | Meets 49 CFR requirements |
| Military Non-Magnetic | Mil-E-24091C (pending) |
| US Navy Specification | Mil-DTL-24652A (SH) (pending) |
| Advanced Vibration Tested | US Navy Mil-167-1 |
| Advanced Shock Tested | US Navy MIL-901E (pending) |
| Heavy Duty Brackets | Black Steel 81-681 / Red Stainless Steel 81-682** |
